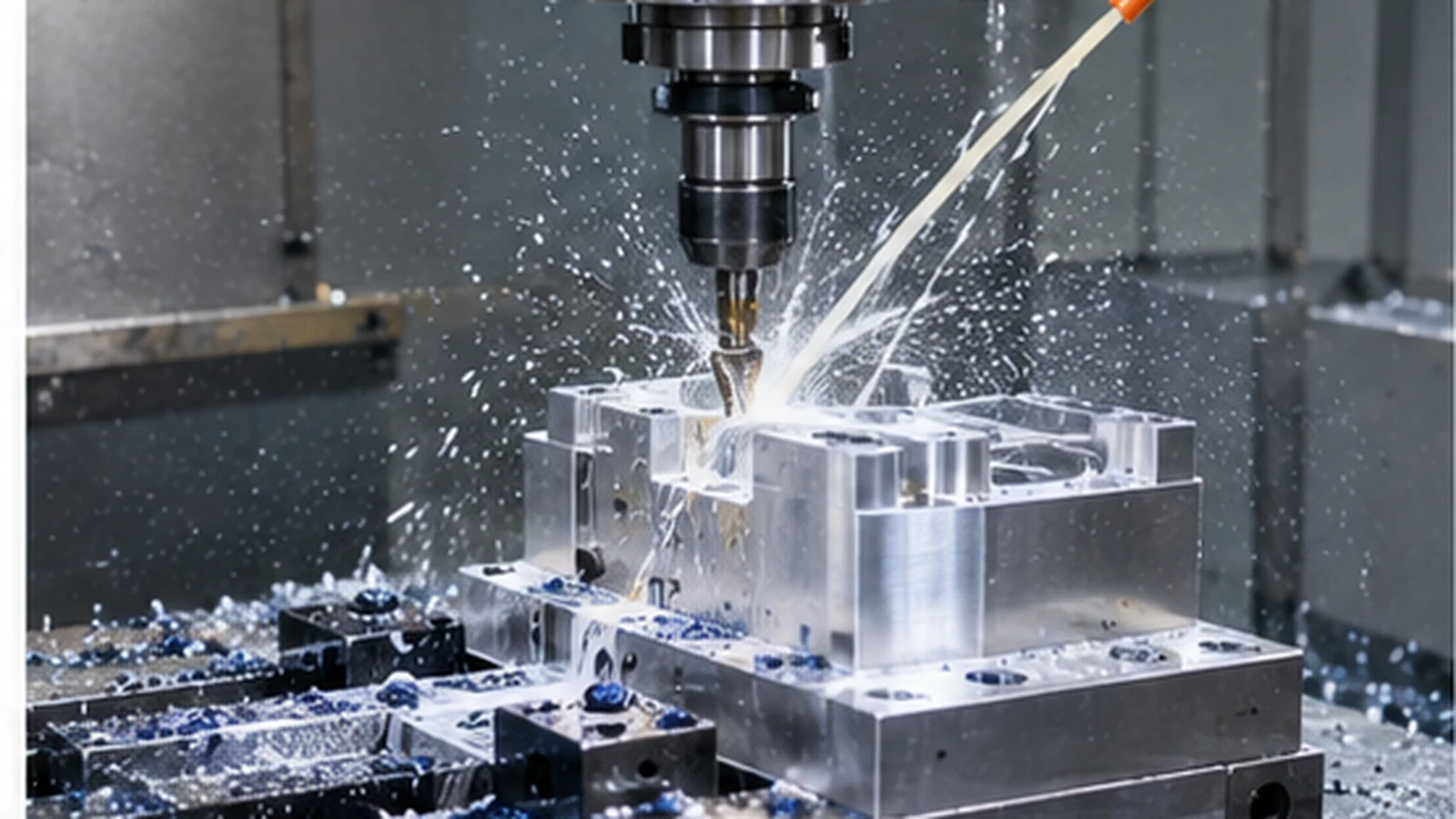

Designing a CNC machined aluminum bracket for industrial automation is not only a question of making the part fit in CAD. The bracket must locate sensors, actuators, rails, cables, and guards repeatedly while remaining practical to fixture, machine, inspect, finish, and assemble. A clear design package helps a manufacturer identify risk early and gives the procurement team a more predictable quotation.
1. Start with the functional datums
Define the surface or interface that locates the bracket in the machine first. Use that functional datum to control the sensor face, mounting holes, slots, and reference edges. If the bracket connects two assemblies, show which features control alignment and which features only provide clearance. This prevents every dimension from being treated as equally critical.
Use GD&T where alignment matters
Position, perpendicularity, parallelism, and flatness callouts are often more useful than a long list of tight plus-or-minus dimensions. Reference them to a practical datum structure that the machinist and inspector can reproduce. If a locating hole controls assembly position, identify its true position and mating condition rather than relying on an ambiguous linear dimension.
2. Make holes and threads manufacturable
Show hole diameter, depth, thread specification, thread depth, and whether a hole is through or blind. Keep enough material around tapped holes and counterbores for tool access. For brackets used inside an automation cell, also check whether a torque wrench, driver, or fastener can reach the installation point after the part is mounted.
Check counterbores, slots, and cable clearance
Slots can provide adjustment, but their length and end radius should match standard cutting tools. Counterbores and countersinks should be deep enough for the specified fastener without creating an unnecessarily thin floor. Reserve clearance for connectors, cable bends, sensor bodies, and moving components, not just the nominal CAD envelope.
3. Control internal corners and tool access
Deep pockets with sharp internal corners usually require small tools, extra machining time, or an EDM operation. Add realistic internal radii wherever the design permits. If a sharp corner is functionally necessary, identify it as a critical feature and expect a different cost and lead-time profile. A quick DFM review can often replace a sharp corner with a relieved radius without affecting assembly performance.
4. Balance stiffness and weight
Automation brackets should be light enough for installation but stiff enough to resist vibration and deflection. Remove material from non-functional regions with pockets or ribs while keeping solid support around mounting faces, threads, and load paths. For camera or sensor mounts, consider the effect of vibration on repeatability rather than optimizing only for minimum mass.
5. Select the right aluminum alloy and finish
6061-T6 is a common choice for general brackets because it offers good machinability, strength, and finishing options. 7075 aluminum may be considered when higher strength-to-weight performance is required, but it should be selected against the application environment and finishing needs. State the alloy and temper explicitly in the RFQ.
Anodizing, bead blasting, powder coating, and chemical conversion coatings can change appearance, corrosion resistance, and some feature dimensions. Call out the required finish, color, masking areas, and cosmetic standard. Features that must remain conductive or fit with a bearing, insert, or dowel may need masking or a post-finish inspection.
6. Define tolerances that support the assembly
Do not apply a tight tolerance to every dimension by default. Identify the critical mounting faces, hole patterns, bearing fits, and locating features, then use normal production tolerances for non-critical edges and cosmetic dimensions. This approach reduces cost while protecting the functions that matter.
For higher-risk assemblies, request a first article inspection or a dimensional report for the critical characteristics. Our equipment and quality control process can be reviewed alongside the drawing requirements.
7. Prepare a complete manufacturing package
- STEP or native 3D CAD file with revision status.
- 2D drawing with material, finish, datums, GD&T, and critical dimensions.
- Quantity for the first build and expected annual volume.
- Thread, insert, hardware, packaging, and labeling requirements.
- Inspection reports, samples, or first-article requirements.
- Destination, requested delivery window, and shipping terms.
For production support, see our precision CNC machining capabilities and the related CNC machined aluminum brackets for industrial automation application page. If your project is ready for review, send the drawings and CAD files through our manufacturing quote request.
FAQ
What is the best aluminum for automation brackets?
6061-T6 is a practical starting point for many brackets. 7075 may be appropriate where higher strength is required. The final selection should consider loads, corrosion, finishing, machinability, and the mating parts.
Should every bracket dimension use a tight tolerance?
No. Tight tolerances should be reserved for alignment, fit, sealing, and motion-related features. Clear datums and functional tolerancing usually provide better control than tightening every dimension.
What should be checked before requesting a quote?
Confirm tool access, internal radii, wall thickness, threads, hole depths, material temper, finish, inspection requirements, quantities, and delivery details. A DFM review before quotation can identify changes before tooling or production begins.
